Radial StageBug SB-5W Wall-mount Stereo Direct Box

Passive Wall-mountable Stereo Direct Box

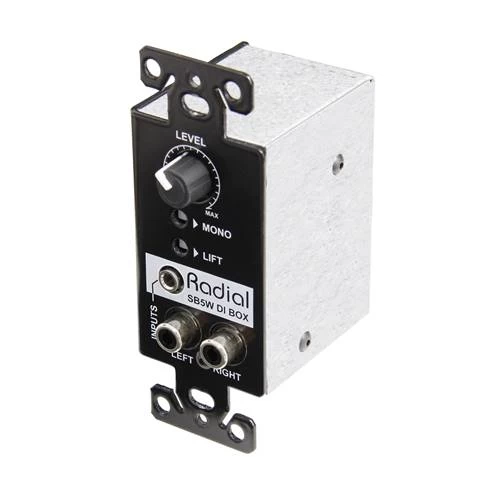

The StageBug SB5W is a passive stereo direct box made to fit in a standard North American single-gang electrical wall plate, providing AV integrators with an effective means of connecting an unbalanced audio source such as a laptop, smartphone, or tablet to a balanced audio system.

Professional sound for installation

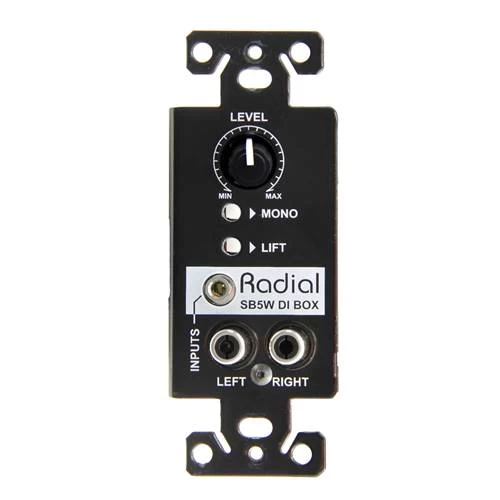

The StageBug SB5W provides a permanently mounted interface to connect consumer audio devices with installed pro audio systems. Front panel 3.5mm TRS and RCA connectors are provided for any stereo source and a fully variable level control makes volume adjustments easy. Inside, the SB5W employs dual transformers that convert the inputs to a low impedance balanced signal, and eliminate hum and buzz caused by ground loops. Set & forget ground lift and mono switches are also included to further reduce noise and to sum the left and right channels together if needed. The outputs of the SB5W feature screw terminals with tie down points for tie-wraps to make installation fast, efficient and permanent.

Features:

• 5mm and RCA inputs with level control
• Passive design, no power needed
• Contractor-friendly screw terminal outputs
• Transformer isolation to eliminate noise

Model:	R800015500
Manufacturer:	Radial
